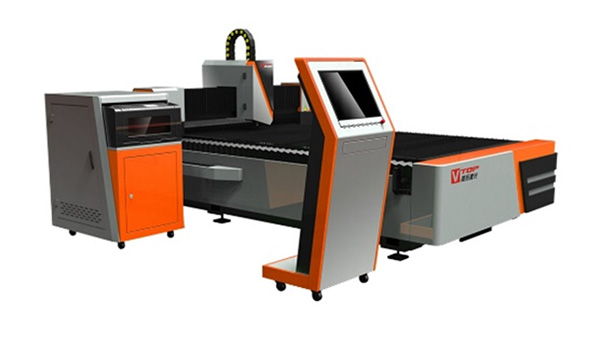

Machine Appearance
The professional industrial design appearance is presented, and each region's modeling level has distinct characteristics, which is stable and without losing the atmosphere, and enhances product quality.
Different function areas is divided distinct and compact, flat shape and unique design to support multi dimension space requirement
Open design supports multi areas and more flexible loading and unloading materials. No matter to use crane, forklift and manual loading, enough space for different requirements of unloading and loading. As for single table, loading and unloading is not synchronous, the speed of loading and unloading is faster, it will be more easily to reduce the downtime, to improve the efficiency of the machines.
GF1530-700W Technical Parameters
No. | Model | GF1530 | Note |
1 | Working ares | 1500mm*3000mm | |
2 | X Y Axis position speed | 100m/min | |
3 | X Y Axis acceleration | 1.2G | |
4 | Position accuracy | ±0.05mm/m | |
5 | Repeat position accuracy | ±0.03mm | |
6 | X-axis travel | 1550mm | |
7 | Y-axis travel | 3050mm | |
8 | Z-axis travel | 200mm | |
9 | Lubrication system | √ | |
10 | Exhaust fan | √ | |
11 | Air filtration system | For option | |
12 | Control system | FSCUT2000/CypCut | |
13 | Laser source power | 700W | |
14 | Laser resonator brand | IPG | |
15 | Cutting head | manual | |
16 | Cooling system | Water | |
17 | Table loading | 580kg | |
18 | Toatal weight | 5T | |
19 | Machine dimensions | 4600mm*3100mm*1900mm | |
20 | Total power consumption | 12KW | |
21 | Electric supply | AC380V 50/60Hz |
