Fiber laser

• High Rigidity Enhanced Aviation Aluminum Gantry, improve the gantry strength and rigidity and much lighter.

• Finite element analysis of gantry help to achieve the best critical state of dynamic performance.

• Integrated structure design, reasonable overall layout.

• Rack and pinion structure, servo drive, secondary annealing treatment of high rigid welding frame with high accuracy and stability.

• SMC (High Pressure Solenoid Valve and precision electronic control proportional valve), Siemens, Schneider Electric components.

• Professional laser cutting software with graphic layout and sharp corner smoothing functions, fast piercing & cutting.

• Fiber laser has better Industry-leading wall-plug efficiency, less power consumption.

• High integration air system: high/low air pressure alarm, N2/O2/High pressure air automatic switching, real-time air pressure monitoring function.

• Fully enclosed with negative pressure, three fans are installed inside to ensure that dusts and wastes are ejected from vents at the bottom of the fiber laser cutting machine

• This fiber laser cutting machine can be easily loaded into shipping containers for export without dissembling protective cover thanks to its compact structure. It can be directly put into use after delivery.

• Table exchange switch and emergency stop button are located at the middle of the laser cutting machine, enabling loading and unloading to be easily accomplished.

• For easy maintenance of parts and Y-axis guide rail within the enclosure, doors are installed on either side of the fiber laser cutting machine.

• Safety measures are available in line with international standards, as evidenced by the equipping with four light curtains that emit infrared lights.

• Multiple dust collectors are installed to function in step with the negative pressure system, enabling the dust to be easily removed.

• The machine body will remain stable after ten years of use and will not deform under full acceleration of 1.2G.

• Gantry structure, high strength welding frame, stress reduction treatment, good rigidity, small deformation.

• Enclosing exterior protective design, CE standard protective safety window.

• Ergonomic design, intelligent operating terminal, friendly interface, easy to learn.

• Precision servo motor with high accuracy transmission mechanism, large transmission torque, small error, good dynamic performance.

• Y axis sliding plate is made by cast aluminum, with integrated z-axis system: high precision, fast response, stable operation.

• Double-layer translation shuƩle tables, the structure is safe and reliable, with few failures and high efficiency.

• Built in remote assistance function to deal with equipment failure, improve the time efficiency of equipment fault troubleshooting and effectively reduce the cost of after-sales service.

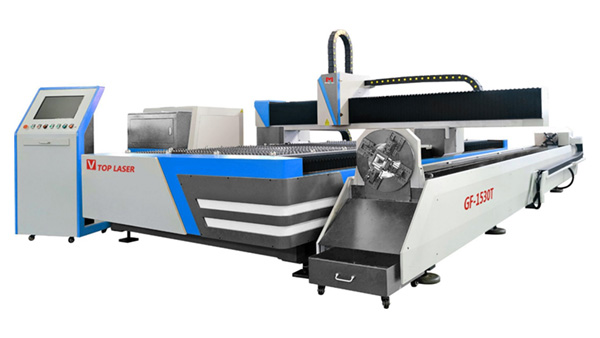

• Equipped with pneumatic self-centering chuck, which support symmetrical independent double-action clamping. Auto- clamping, no need manual intervention. Simple, stable and good sealing structure. Clamp is suitable for square, round and oval pipes, flat and triangle tube, profile etc.

• Reinforced welding machine body, with high precision and stability.

• Imported large gantry machine, with high precision processing, the internal stress is eliminated by tempering and vibration aging to ensure that the machine deformation tolerance is within 0.03mm.

• Integrated structure design, compacted layout, small size occupation.

• Enjoy high efficiency of electro-optic conversion, up to more than 30%, which can greatly save power consumption and achieve the highest production efficiency.

• Only electric needed, auxiliary gas blowing help to ensure cutting surface smoothly.

• High Rigidity Enhanced Aviation Aluminum Gantry, improve the gantry strength and rigidity and much lighter.

• Finite element analysis of gantry helps to achieve the best critical state of dynamic performance.

• Integrated structure design, reasonable overall layout.
• Rack and pinion structure, servo drive, secondary annealing treatment of high rigid welding frame with high accuracy and stability.

• Professional laser cutting software with graphic layout and sharp corner smoothing functions, fast piercing & cutting.

• Fiber laser has better Industry-leading wall-plug efficiency (around 40%), less power consumption.

• Hand controller is available, easy for operation.

• High Rigidity Enhanced Aviation Aluminum Gantry, improve the gantry strength and rigidity and much lighter.

• Finite element analysis of gantry helps to achieve the best critical state of dynamic performance.

• Integrated structure design, reasonable overall layout.

• Rack and pinion structure, servo drive, secondary annealing treatment of high rigid welding frame with high accuracy and stability.

• Professional laser cutting software with graphic layout and sharp corner smoothing functions, fast piercing & cutting.

• Fiber laser has better Industry-leading wall-plug efficiency (around 40%), less power consumption.

• Hand controller is available, easy for operation.

• Fiber line transmission, no need for adjustment of optical path.

• Precise height control to maintain stable cutting quality.

• The fiber laser cutting machine is 2-3 times quicker in cutting than other cutting machines, especially when cutting thin sheet metals, with high quality cutting results.

• Laser focus can be as small as 25 um, meaning cutting kerf can be very narrow and no deformation will be caused.

• This fiber laser cutting machine is applicable for cutting carbon steel, stainless steel, aluminum and copper.

• Applied in a wide range of industries, including sheet metal processing, digital products and advertising.

• 30% of electricity will be translated into laser energy during the cutting, which is higher than the CO₂ laser cutter (10%-15%) and diode laser cutter (less than 5%).
