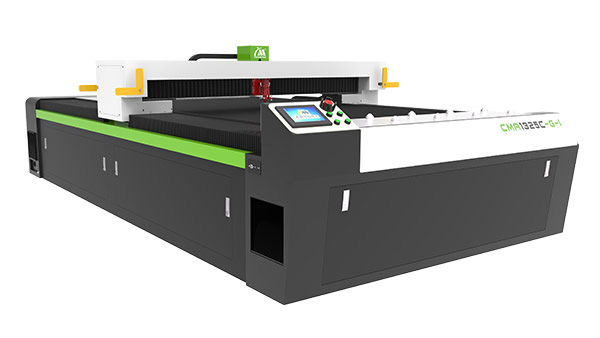

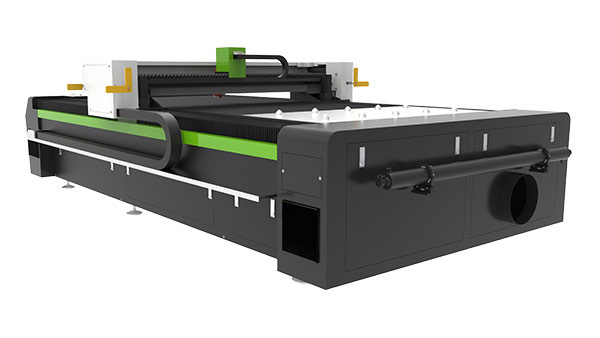

Features
- The rack & pinion double servo drive system is four times the speed of the traditional ball screw drive structure and has the advantages of high efficiency and stability.
- The whole reinforced welded steel frame, stress relief annealing, to ensure the stability of the processing.
- The maximum speed can reach 80m/m, and can realize high speed cutting and carving.
- The laser source is fixed at the bottom of the machine. The crossbeam has no load and resonance. It is the fastest large non-metal laser cutting machine in the industry.
Technical Parameter
| Items | CMA1325C-G-I |
| Working area | 1300mm×2500mm |
| Laser power output | 130W~350W (optional) |
| Laser source | Coherent RF tubes, glass tubes |
| Transmission | Rack & pinion + dual servo motor & gantry |
| Max speed | 30m/min |
| Max acceleration | 0.6G |
| Positioning accuracy | ±0.05mm/1000mm |
| Repositioning accuracy | ±0.03mm/1000mm |
| Cooling type | Water cooling |
| Working environment | Temp: 0-40℃; humidity≤80%, no condensation |
| Total power | 4KW |
| Power supply | Single phase 220V /50Hz/60Hz |
| Total weight | 2300Kg |
| Overall dimension | 4170x2350x1260 mm |
Parts Introduction
-
Application
Material
Non-metal materials such as acrylics, wood, MDF.Sample:
-
