Features
- Rack & pinion + dual servo motor drive system, 30% faster than ball screw transmission, more efficient and stable;
- The aluminum crossbeam has the advantages of light weight, small resonance, long term stable performance;
- Welded steel frame, stress relief annealing, no distortion in long term running;
- Compatible with various focus lenses, for different thickness material;
- Glass tube and RF metal tube available for option.
Technical Parameter

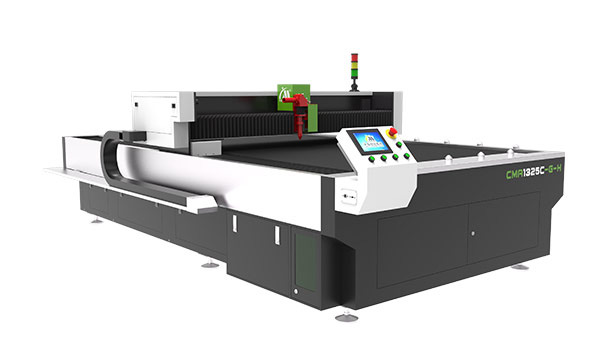

| Items | CMA1325C-G-H |
| Working area | 1300mm×2500mm |
| Laser power output | 130W~350W (optional) |
| Laser source | Rofin /Coherent RF tubes, glass tubes |
| Transmission | Rack & pinion + dual servo motor & gantry |
| Max speed | 30m/min |
| Max acceleration | 0.6G |
| Positioning accuracy | ±0.05mm/1000mm |
| Repositioning accuracy | ±0.03mm/1000mm |
| Cooling type | Water cooling |
| Working environment | Temp: 0-40℃; humidity<=80%, no condensation |
| Total power | 10KW |
| Power supply | Machine body：220V /50Hz |
| Auxiliary machines | 380V /50Hz |
| Total weight | 1800Kg |
| Overall dimension | 3850x2190x1470 mm |
-
Application
Material
Non-metal materials such as acrylics, wood, MDF.
Sample:
-
