Fiber Laser Cutting Machine CMA1325C-G-G

Features

Gantry rack & pinion double-drive structure, reinforced aluminum alloy crossbeam.
Imported IPG fiber laser generator, optimal electro-optical conversion efficiency.
German IGUS cable is used in the whole machine, reliable and stable.
Main components are Siemens, Schneider, SMC and other imported well-known brands.
The professional laser cutting software has the function of graphic arrangement and sharp angle smoothing, which can realize high-speed punching and marking.
Can cut copper, brass, galvanized sheet and other high anti-material.

Technical Parameter

Working area	2500mm×1300mm
Laser power	300W-1000W（optional）
Maximum speed	60m/min
Laser type	Fiber laser
Transmission system	Gantry rack & pinion double drive
Maximum acceleration	0.6G
Positional accuracy	±0.05mm/1000mm
Reposition accuracy	±0.03mm/1000mm
Supporting format	PLT、DXF、AI、CAD etc.
Working environment	0-40℃ Humidity≤ 80% ，non-condensation
Gross power	4KW
Power input	220V/50Hz/60Hz
Gross weight	2300Kg
Net dimension	4520mm×2030mm×1750mm

Parts Introduction

Imported fiber laser

Y axis synchronized dual-motor

Focusing system (optional)

Precise moving component

Cooling system

Professional steel plate cutting software

YASKAWA servo motor

Gantry structure

Application

Material：

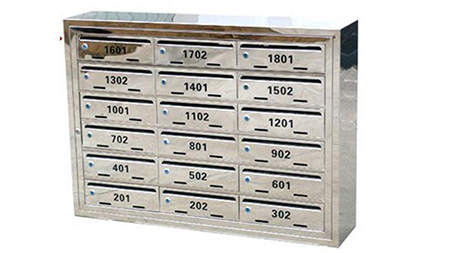

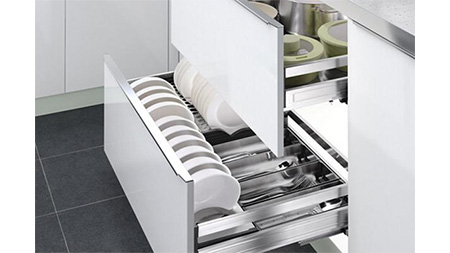

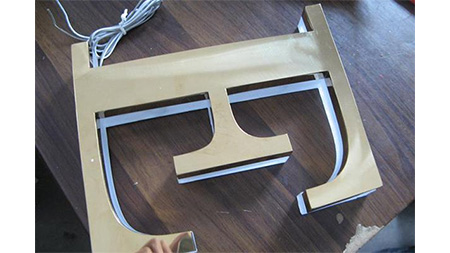

Mainly used for cutting carbon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet, brass, etc.

Industry application：

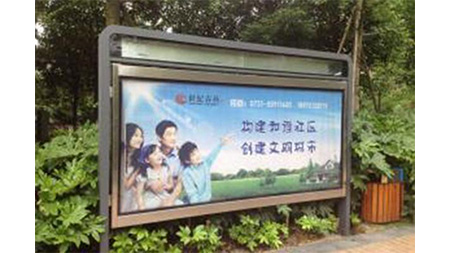

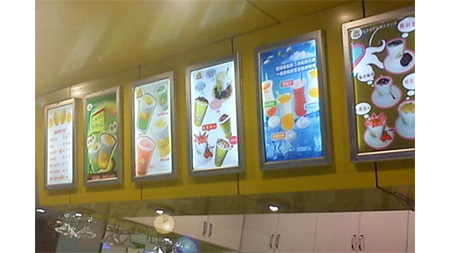

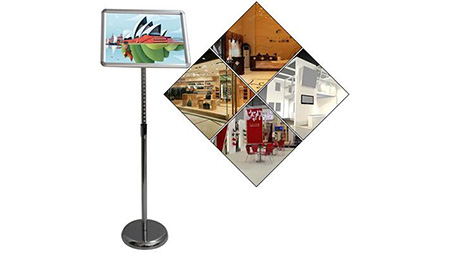

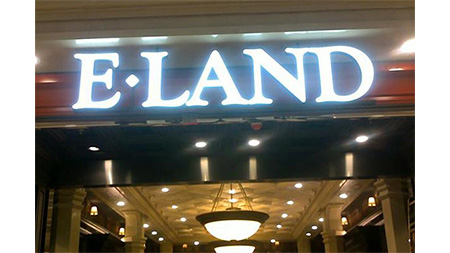

Sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, machinery, precision parts, ships, metallurgy equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal processing and other manufacturing industries.
