Fiber Laser Cutting Machine CMA1530C-GH-D

Features

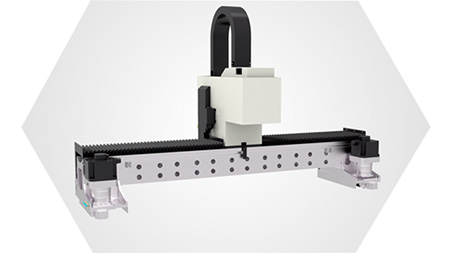

Gantry rack & pinion and double serve system, MHMD with great torque, maximum acceleration up to 1.2G to ensure the machine could work efficiently and precisely.
Intensive chassis with high rigidity. Processed by large gantry milling machine through tempering and vibration aging, non-stress limiting the shape variables and stress relief of the machine within ±0.02mm.

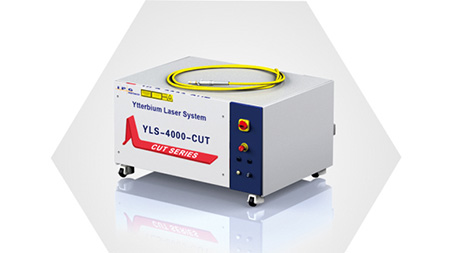

High-performance fiber laser generator, ensuring the high-quality-outcome of sheet steel processing.

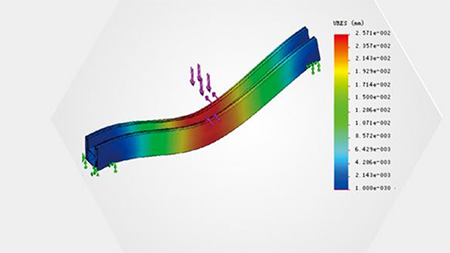

Finite element analysis of gantry help to achieve the best critical state of dynamic performance, light weight, rigid structure.

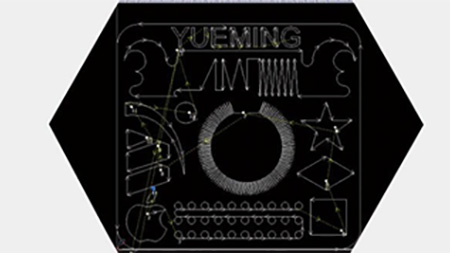

Professional steel plate cutting software, optimizing the layout of cutting pattern to save cutting path and fillet, achieving high speed punching and cutting.
The power consummation only 3~4Kw/h (fiber laser generator), just with compressed air the CMA1530C-GH-D could achieve great section on cutting sheet metal.

Working area	3000mm×1500mm
Laser type	Fiber laser
Output Laser power	700W~3000W
Transmission system	Double serve motor & gantry & rack & pinion
Loading method	Automatic exchanging pallets
Max. speed	120m/min
Max. acceleration	1.2 G
Position accuracy	±0.03mm/1000mm
Reposition accuracy	±0.02mm/1000mm
Supported graphic format	PLT/DXF/DSP/AI/CAD etc.
Total power	20KW
Power supply	380V/50Hz
Gross weight	6000Kg
Overall dimension（including cover）	8660mm×2800mm×2000mm
Working environment	0-45℃ Humidity≤ 80%， non-condensation
