Radial Drilling Machine

Product Feature

Our mousetrap, the Z-series drilling machine embodies more than a half century of technological and ergonomic refinement. For simple drilling work that must be done quickly, accurately, and with minimal fuss the Z-series cannot be beat.

Standard Specification

Model		Unit	Z3032x 8/1	Z3032x 10/1	Z3032x 10/1	Z3040x 12/1	Z3040x 16/1	Z3050x 12/1	Z3050x 16/1	Z3050x 18/1
Max. drilling diameter		mm	32	25	32	40	40	50	50	50
Distance between spindle axis and Column	Max.	mm	820	1000	1000	1250	1600	1250	1600	1800
Distance between spindle axis and Column	Min.	mm	320	300	300	350	350	350	350	350
Distance between spindle axis and working surface of machine base	Max.	mm	850	1030	1000	1250	1250	1220	1250	1220
	Min.	mm	90	250	220	350	350	320	350	320
Spindle travel		mm	240	280	280	315	315	315	315	315
Spindle taper (Mohs)		No.	No.4	No.3	No.4	4#	4#	5#	5#	5#
Range of spindle speed		r/min	75-1220	32-2500	32-2500	25-2000	25-2000	25-2000	25-2000	25-2000
Number of spindle speed		Number	6	16	16	16	16	16	16	16
Range of spindle feeds		mm	0.1-0.25	0.10-1.25	0.10-1.25	0.04-3.2	0.04-3.2	0.04-3.2	0.04-3.2	0.04-3.2
Number of spindle feeds		Number	3	8	8	16	16	16	16	16
Worktable dimensions		mm	1690x1020 x2250	2050x1070 x2190	2050x1070 x2190	630x500 x500	630x500 x500	630x500 x500	630x500 x500	630x500 x500
Travel of spindle headstock		mm	-	-	-	900	1250	900	1250	1450
Max. torque of spindle			-	-	-	400	400	500	500	500
Power of main motor		kW	1.5	1.5	2.2	3	3	4	4	4
Lifting distance of swing arm		mm	-	-	-	580	580	580	580	580
Travel of slide block		mm	-	-	-	-	-	-	-	-
Weight of the machine		kg	1200/1700	1600/2200	3000	3500	3000	3500	3500	3550
Overall dimensions of the machine		mm	1417x720 x1885	1760x800 x2050	1760x80 0x2050	2150x1070 x2840	2150x1070 x2840	2500x1070 x2840	2700x1070 x2840	2700x1070 x2840

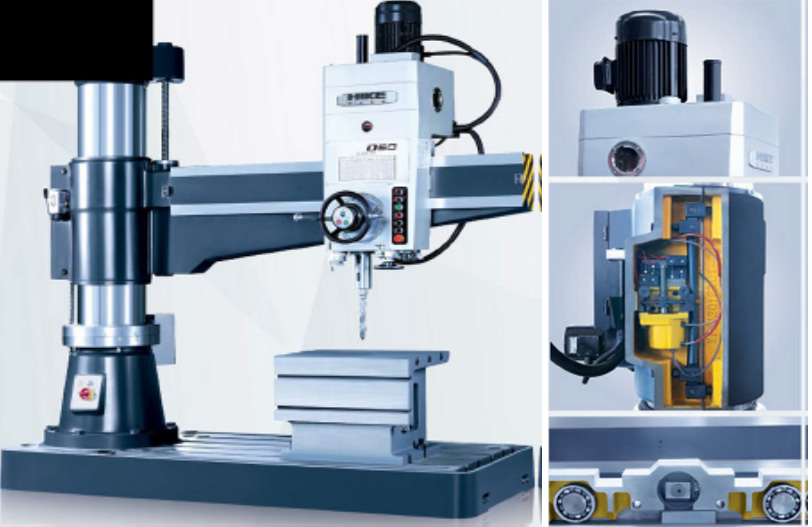

Optional
