3D Triaxial Dynamic Laser Marking Machine MF-D-A

Features

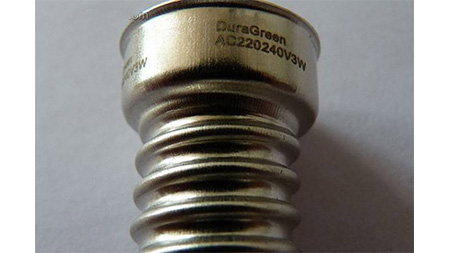

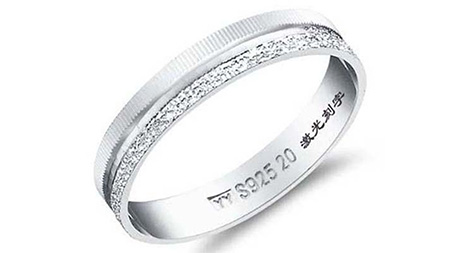

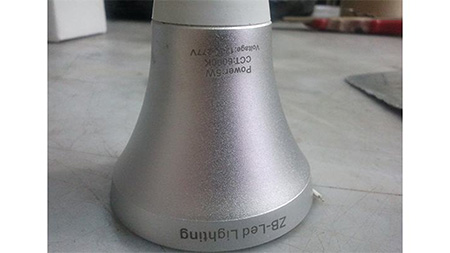

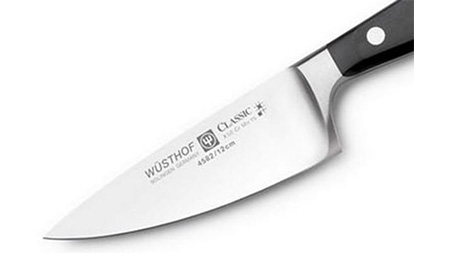

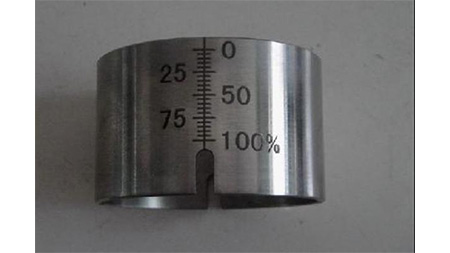

Equipped with the advanced 3D galvanometer scanner, within 0~60mm height, it could generate very precise laser spot. It could mark on the 3D curved surface, and the marking quality is uniform within the scope (0~60mm height).
The maximum marking area is 400*400mm, which is much bigger than normal fiber laser marker.
The advanced triaxle digital galvanometer scanner mark fast, focus in real time and could generate precise and uniform laser spot.
Modular design. This machine is compatible for the majority of domestic and foreign fiber laser generators.
It adopts marble platform, improve the stabilization and anti-seismic property of the whole machine.
The marking software could import chart exported from the mainstream 3D software, and edit those charts in simple way, easy for operators.

Technical Parameter

Laser power	20W/30W/50W
Supply voltage	AC220±10%，50HZ
Repeated location precision	≤±0.005mm
Working area	600mmX600mm
Marking speed	0~7000mm/s
Gross power	<1000W(not including auxiliaries）
Graphics format supported	AI、DXF、BMP、JPG、PLT etc.
Overall dimension	600mmX935mmX1600mm
Weight	120KG(Estimation)
Working environment	Clean,less dust,Temp:10~ 30°C, Humidity:5~85%
Gross power	1.0kw

Parts Introduction

Large format marking area-400*400mm, 3D focus technology, ensure the same marking effect within 0-60mm height difference surface. XY moving table/rotary device/rotating disk are available for different kinds of customer demonds.

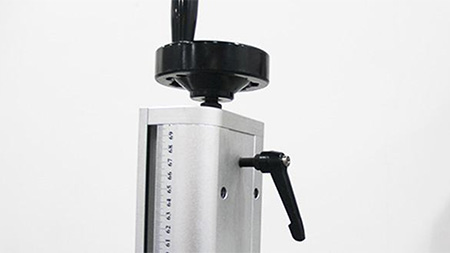

Lifting platform with high-quality guide-rail and wear-resistant screw, smooth to ajdjust with less engergy. Lock mechanism avoids the natural slip and the mistaken operation.

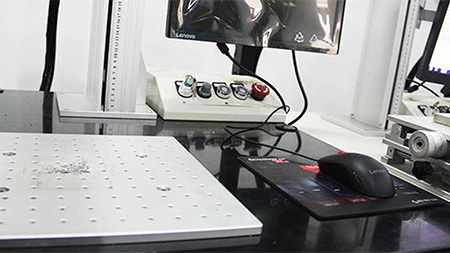

Marbel processing worktable , with good Seismic resistance and stress resistance, good flatness, high stability

Modular design , compatible for the laser generator from China to abroad, with high- adaptability

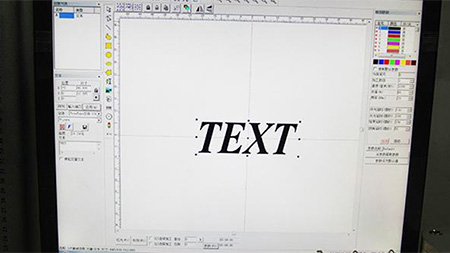

Powerful software, easily input the patterns from mainstream 3D design software, edit simple 3D graph, transfer 2D graph to 3D graph, easy to operate.
