Features
- High quality fiber generator, good quality spot, optical power density uniform, stable output optical power, meets the application demand of mainstream market;
- Han's Yueming self-developed digital high-speed galvanometer scanner, small size, high speed and excellent stability; the performance reaches the international advanced level;
- Powerful control system, optimizes the processing data according to various application, supports multi language switch, and up to 256 color layer management functions, meets the application requirements of most industries;
- Die-casting mold manufacturing lifting frame, stable structure, built-in linear guide, simple design.
Technical Parameter
| Laser power | 20w/30w/50w |
| Marking area(mm) | 110×110/175×175/200*200/300*300 |
| Lifting height(mm) | 100-500(optional 700) |
| Laser wavelength | 1.06μm |
| Light Spot qality | <1.2㎡ |
| Pulse frequency | 20~80KHz |
| Type of cooling | Air cooling |
| Minimum line width | 0.02mm |
| Minimum character | 0.2mm |
| Marking speed | 0~7000mm/s |
| Graphic format supported | BMP、PLT、AI、DXF etc. |
| Supply voltage | AC220V±10% |
| Frequency | 50Hz/60Hz |
| Machine dimension | 750mm×600mm×1270mm |
| Machineweight | 80Kg (Estimation) |
| Work environment | Clean, less dust,Temp:10~35°C,Humidity:5~85% |
| Total power | 1Kw |
Parts Introduction
OEM Han's Yueming laser generator with good quality laser spot.
Digital high-speed scanning galvanometer with international advanced level

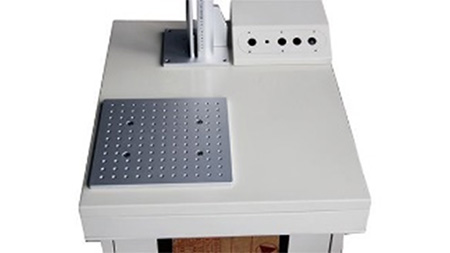

Large operating worktable, easy for larger materterial marking

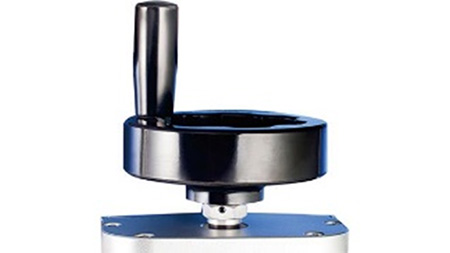

lifting adjustable wheel is suitable for different processing surface
Mold casting manufacture lifting platform, stable structure
Application
Material:
Plastics, Stainless steel, and other metal materials surface marking.
Sample:

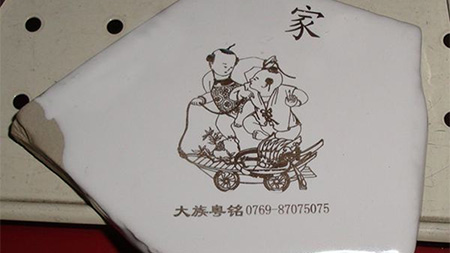

ceramic laser marking

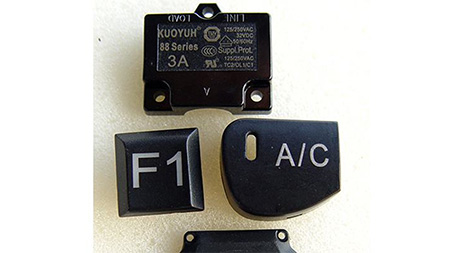

key laser marking

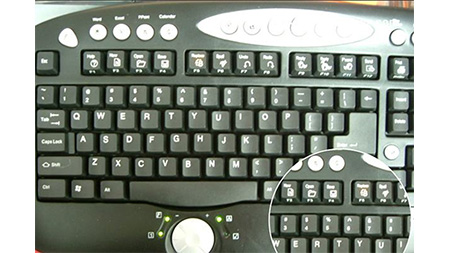

keyboard laser marking
metal cutter laser marking and engraving
metal keychain laser marking

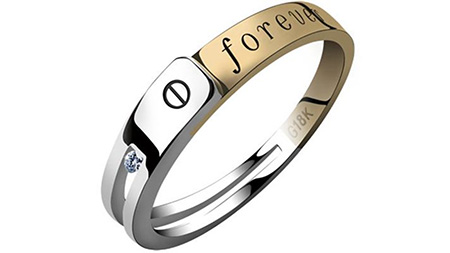

ring laser marking and engraving

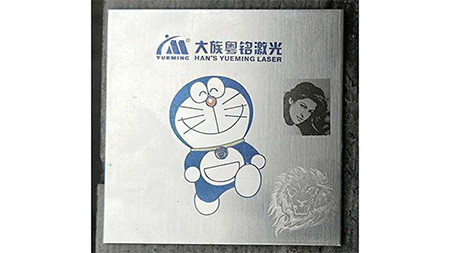

stainless coloured laser marking

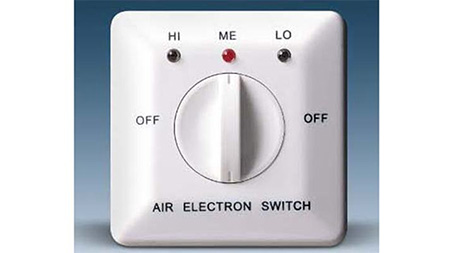

switch laser marking
