QC11Y-Series (nc) Hydraulic Guillotine Shearing Machine

The model of this nc hydraulic guillotine shear is With E21S NC controller,E21 can control the movement of backgauge,achieving efficient and highly precise positioning;Adjustable rake angle to minimize deformation of sheared plate.

Basic features

  • Steel welded structure with stress-free
  • Three guide trolleys enable accurate movement and fine shearing results

Specification

Speaification Parameter
Shearing Thickness (mm) Shearing Width (mm) Strokes mm¯ ¹ Backgauge Range (mm) Shearing Angle ( º ) Main Motor Power (kw)
QC11Y/K-6 x 2500 6 2500 16-35 20-500 30´ -1º 30 7.5
QC11Y/K-6 x 3200 6 3200 14-35 20-500 30´ -1º 30 7.5
QC11Y/K-6 x 4000 6 4000 10–30 20-500 30´ -1º 30 7.5
QC11Y/K-6 x 5000 6 5000 10–30 20-600 30´ -1º 30 11
QC11Y/K-6 x 6000 6 6000 8–25 20-600 30´ -1º 30 11
QC11Y/K-8 x 2500 8 2500 14-30 20-600 30´ -2º 11
QC11Y/K-8 x 3200 8 3200 12–30 20-600 30´ -2º 11
QC11Y/K-8 x 4000 8 4000 10–25 20-600 30´ -2º 11
QC11Y/K-8 x 5000 8 5000 10–25 20-600 30´ -2º 15
QC11Y/K-8 x 6000 8 6000 8–20 20-600 30´ -2º 15
QC11Y/K-12 x 2500 12 2500 12–25 20-600 30´ -2º 15
QC11Y/K-12 x 3200 12 3200 12–25 20-600 30´ -2º 15
QC11Y/K-12 x 4000 12 4000 8–20 20-600 30´ -2º 15
QC11Y/K-12 x 5000 12 5000 8–20 20-800 30´ -2º 22
QC11Y/K-12 x 6000 12 6000 6–20 20-800 30´ -2º 30
QC11Y/K-12 x 8000 12 8000 6–15 20-800 30´ -2º 37
QC11Y/K-16 x 2500 16 2500 12–20 20-800 30´ -2º 30 22
QC11Y/K-16 x 3200 16 3200 12–20 20-1000 30´ -2º 30 22
QC11Y/K-16 x 4000 16 4000 8–15 20-1000 30´ -2º 30 22
QC11Y/K-16 x 5000 16 5000 8–15 20-1000 30´ -2º 30 30
QC11Y/K-16 x 6000 16 6000 6–15 20-1000 30´ -2º 30 37
QC11Y/K-16 x 8000 16 8000 6–15 20-1000 30´ -2º 30 37
QC11Y/K-20 x 2500 20 2500 10–20 20-1000 30´-3º 30
QC11Y/K-20 x 3200 20 3200 10–20 20-1000 30´-3º 30
QC11Y/K-20 x 4000 20 4000 8–15 20-1000 30´-3º 30
QC11Y/K-20 x 5000 20 5000 8–15 20-1000 30´-3º 37
QC11Y/K-20 x 6000 20 6000 6–15 20-1000 30´-3º 37
QC11Y/K-20 x 8000 20 8000 4–15 20-1000 1º 30´-3º 30 55
QC11Y/K-25 x 2500 25 2500 8–15 20-1000 1º 30´-3º 30 37
QC11Y/K-25 x 3200 25 3200 8–15 20-1000 1º 30´-3º 30 37
QC11Y/K-25 x 4000 25 4000 6–12 20-1000 1º 30´-3º 30 37
QC11Y/K-32 x 2500 32 2500 6–12 20-1000 1º 30-4º 55
QC11Y/K-32 x 3200 32 3200 8–12 20-1000 1º 30-4º 55
QC11Y/K-40 x 2500 40 2500 4–10 20-1000 2º -4º 55
QC11Y/K-40 x 3200 40 3200 4–10 20-1000 2º -4º 55
QC11Y/K-50 x 2500 50 2500 3–10 20-1000 2º -4º 90x2
QC11Y/K-50 x 3200 50 3200 3–10 20-1000 2º -4º 90x3
QC11Y/K-60 x 3200 60 3200 2–8 20-1000 2º -4º 90x4

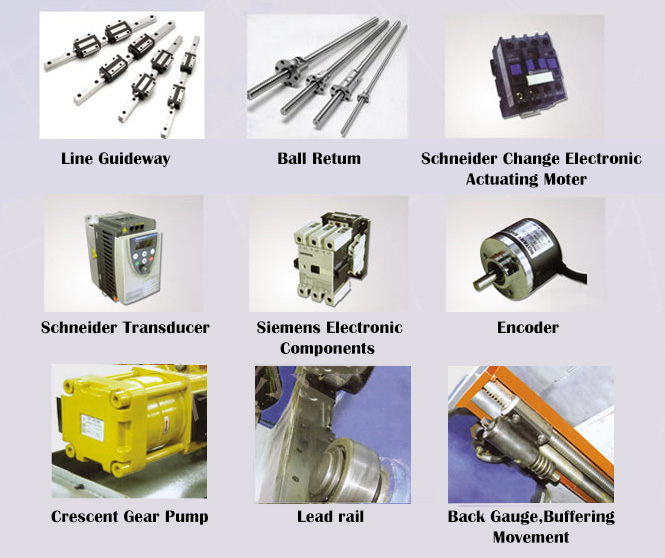

Application

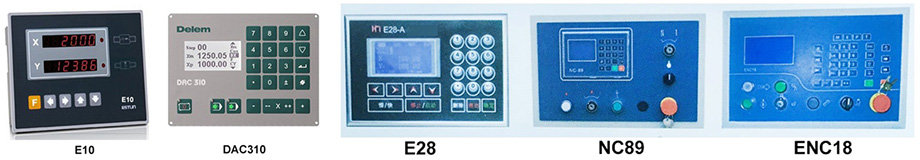

Optional CNC system

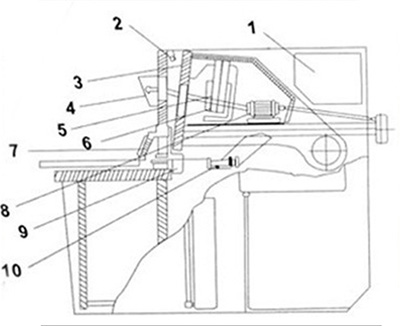

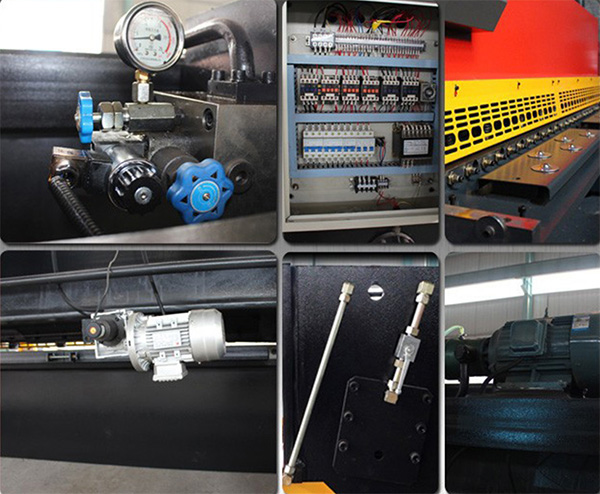

  1. Fuel tank, hydraulic manifold
  2. Lighting devices with on-line
  3. Swing arm
  4. Console
  5. Master cylinder
  6. Quick backhaul cylinder
  7. Security protective device
  8. After the block moter
  9. Throat
  10. Moter driven backgauge
